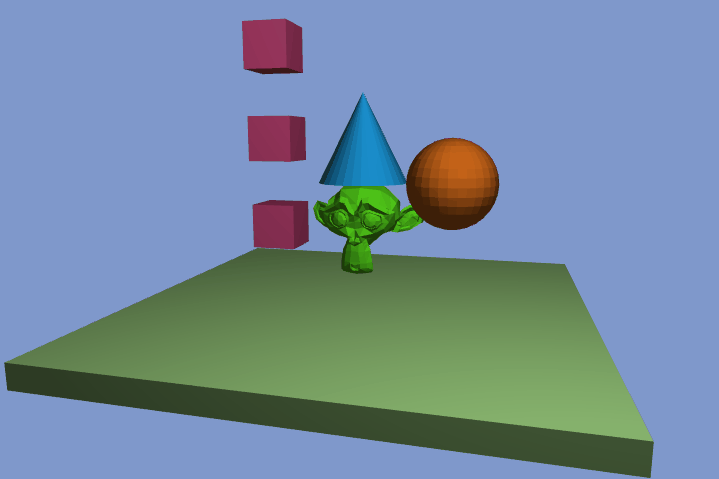

В примере загружаются стандартные объекты Blender из формата dae без текстур. Цвет каждого объекта задаётся в самой программе - цвет через uniform-переменную передаётся в фрагментный шейдер. Библиотека glMatrix - для математики матриц и векторов. Подключил физический движок Cannon.js. Кубики падают с небольшим смещением по оси Z по направлению к наблюдателю, поэтому башенка заваливается в сторону наблюдателя и падает.
Замечу, что я вместо углов Эйлера использую кватернионы, потому что далее, если делать анимации, например, как эта анимация экспортированная из Blender из формата dae:
то в glMatrix есть удобная функция quat.slerp() для интерполяции кватернионов между двумя key frames. По умолчанию Cannon.js использует ось Z направленную вверх, а в WebGL ось Y направлена вверх, а ось Z в WebGL направлена на наблюдателя, поэтому нужно направить гравитацию вниз по Y:
| JavaScript | 1
| world.gravity.set(0, -9.82, 0); |
|
| JavaScript | 1
| glMatrix.quat.fromValues(-0.707, 0, 0, 0.707); |
|
index.html
| PHP/HTML | 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| <!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Colored Objects from DAE. Cannon.js, WebGL, JavaScript</title>
<script src="https://cdn.jsdelivr.net/npm/gl-matrix@3.4.3/gl-matrix-min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/cannon@0.6.2/build/cannon.min.js"></script>
<style>
html,
body {
overflow: hidden;
width: 100%;
height: 100%;
margin: 0;
padding: 0;
}
#renderCanvas {
width: 100%;
height: 100%;
}
</style>
</head>
<body>
<canvas id="renderCanvas" width="500" height="500"></canvas>
<script src="js/webgl-context.js"></script>
<script src="js/shader-program.js"></script>
<script src="js/vertex-buffers.js"></script>
<script src="js/object-for-graphics.js"></script>
<script src="js/object-for-physics.js"></script>
<script src="js/main.js"></script>
</body>
</html> |
|
| JavaScript | 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
| let ground, sphere, cone, monkey;
let cubes = [];
const projMatrix = glMatrix.mat4.create();
const viewMatrix = glMatrix.mat4.create();
const projViewMatrix = glMatrix.mat4.create();
const world = new CANNON.World();
world.gravity.set(0, -9.82, 0);
initVertexBuffers(["assets/cube.dae", "assets/sphere.dae", "assets/cone.dae", "assets/monkey.dae"],
(vertPosVBOs, normalVBOs, amounts) =>
{
const groundSize = [5, 5, 0.25];
const groundShape = new CANNON.Box(new CANNON.Vec3(groundSize[0], groundSize[1], groundSize[2]));
ground = new ObjectForPhysics(program, [0, -2, 0], glMatrix.quat.fromValues(-0.707, 0, 0, 0.707), groundSize,
[0.584, 0.774, 0.474], amounts[0], vertPosVBOs[0], normalVBOs[0], null, null, world, groundShape, true);
const cubeSize = [0.5, 0.5, 0.5];
const cubeShape = new CANNON.Box(new CANNON.Vec3(cubeSize[0], cubeSize[1], cubeSize[2]));
for (let i = 0; i < 5; ++i)
{
const cube = new ObjectForPhysics(program, [-2, i * 2, i * 0.11], glMatrix.quat.fromValues(-0.707, 0, 0, 0.707), cubeSize,
[0.784, 0.274, 0.474], amounts[0], vertPosVBOs[0], normalVBOs[0], null, null, world, cubeShape, false);
cubes.push(cube);
}
sphere = new ObjectForGraphics(program, [2, 1, 0], [0.796, 0.403, 0.101], amounts[1], vertPosVBOs[1], normalVBOs[1], null, null,);
cone = new ObjectForGraphics(program, [0, 2, 0], [0.101, 0.556, 0.796], amounts[2], vertPosVBOs[2], normalVBOs[2], null, null,);
monkey = new ObjectForGraphics(program, [0, 0, 0], [0.321, 0.796, 0.101], amounts[3], vertPosVBOs[3], normalVBOs[3], null, null,);
init();
});
function init()
{
glMatrix.mat4.perspective(projMatrix, 55 * Math.PI / 180, 1, 0.1, 500);
glMatrix.mat4.lookAt(viewMatrix, [3, 2, 12], [0, 0, 0], [0, 1, 0]);
const lightPosition = glMatrix.vec3.fromValues(5, 7, 9);
const uLightPositionLocation = gl.getUniformLocation(program, "uLightPosition");
gl.uniform3fv(uLightPositionLocation, lightPosition);
window.onresize = () =>
{
const w = canvas.clientWidth;
const h = canvas.clientHeight;
gl.canvas.width = w;
gl.canvas.height = h;
gl.viewport(0, 0, gl.drawingBufferWidth, gl.drawingBufferHeight);
glMatrix.mat4.perspective(projMatrix, 55 * Math.PI / 180, w / h, 0.1, 500);
simulationLoop();
};
window.onresize(null);
}
const fixedTimeStep = 0.015;
const maxSubSteps = 3;
let lastTime, dt;
function simulationLoop(time)
{
requestAnimationFrame(simulationLoop);
if (lastTime !== undefined)
{
dt = (time - lastTime) / 1000;
world.step(fixedTimeStep, dt, maxSubSteps);
for (let i = 0; i < 5; ++i)
{
cubes[i].update();
}
draw();
}
lastTime = time;
}
function draw()
{
gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);
glMatrix.mat4.mul(projViewMatrix, projMatrix, viewMatrix);
ground.draw(projViewMatrix);
for (let i = 0; i < 5; ++i)
{
cubes[i].draw(projViewMatrix);
}
sphere.draw(projViewMatrix);
cone.draw(projViewMatrix);
monkey.draw(projViewMatrix);
} |
|
| JavaScript | 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
| class ObjectForGraphics
{
constructor(program, position, color, amountOfVertices, vertPosBuffer, normalBuffer, texCoordBuffer, texture)
{
this.position = position;
this.rotation = glMatrix.quat.create();
this.scale = [1, 1, 1];
this.color = color;
this.amountOfVertices = amountOfVertices;
this.texture = texture;
this.vertPosBuffer = vertPosBuffer;
this.normalBuffer = normalBuffer;
this.texCoordBuffer = texCoordBuffer;
this.mvpMatrix = glMatrix.mat4.create();
this.modelMatrix = glMatrix.mat4.create();
this.normalMatrix = glMatrix.mat4.create();
gl.useProgram(program);
this.uMvpMatrixLocation = gl.getUniformLocation(program, "uMvpMatrix");
this.uModelMatrixLocation = gl.getUniformLocation(program, "uModelMatrix");
this.uNormalMatrixLocation = gl.getUniformLocation(program, "uNormalMatrix");
this.uColorLocation = gl.getUniformLocation(program, "uColor");
this.program = program;
}
bind()
{
gl.bindBuffer(gl.ARRAY_BUFFER, this.vertPosBuffer);
gl.vertexAttribPointer(0, 3, gl.FLOAT, false, this.posStride, this.posAttribByteOffset);
gl.enableVertexAttribArray(0);
gl.bindBuffer(gl.ARRAY_BUFFER, this.normalBuffer);
gl.vertexAttribPointer(1, 3, gl.FLOAT, false, this.normalStride, this.normalAttribByteOffset);
gl.enableVertexAttribArray(1);
if (this.texCoordBuffer !== null)
{
gl.bindBuffer(gl.ARRAY_BUFFER, this.texCoordBuffer);
gl.vertexAttribPointer(2, 2, gl.FLOAT, false, this.texCoordStride, this.texCoordAttribByteOffset);
gl.enableVertexAttribArray(2);
}
if (this.texture !== null)
{
gl.bindTexture(gl.TEXTURE_2D, this.texture);
}
}
draw(projViewMatrix)
{
gl.useProgram(this.program);
glMatrix.mat4.fromRotationTranslationScale(this.modelMatrix, this.rotation, this.position, this.scale);
glMatrix.mat4.mul(this.mvpMatrix, projViewMatrix, this.modelMatrix);
gl.uniformMatrix4fv(this.uMvpMatrixLocation, false, this.mvpMatrix);
gl.uniformMatrix4fv(this.uModelMatrixLocation, false, this.modelMatrix);
glMatrix.mat4.invert(this.normalMatrix, this.modelMatrix);
glMatrix.mat4.transpose(this.normalMatrix, this.normalMatrix);
gl.uniformMatrix4fv(this.uNormalMatrixLocation, false, this.normalMatrix);
gl.uniform3fv(this.uColorLocation, this.color);
this.bind();
gl.drawArrays(gl.TRIANGLES, 0, this.amountOfVertices);
}
} |
|
| JavaScript | 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
| class ObjectForPhysics extends ObjectForGraphics
{
constructor(program, position, rotation, scale, color, amountOfVertices, vertPosBuffer, normalBuffer,
texCoordBuffer, texture, world, shape, isStatic)
{
super(program, position, color, amountOfVertices, vertPosBuffer, normalBuffer, texCoordBuffer, texture);
this.rotation = rotation;
this.scale = scale;
if (isStatic)
{
this.body = new CANNON.Body({ mass: 0 });
}
else
{
this.body = new CANNON.Body({ mass: 10 });
}
this.body.addShape(shape);
this.body.position = new CANNON.Vec3(position[0], position[1], position[2]);
this.body.quaternion = new CANNON.Quaternion(this.rotation[0], this.rotation[1], this.rotation[2], this.rotation[3]);
world.addBody(this.body);
}
update()
{
this.position[0] = this.body.position.x;
this.position[1] = this.body.position.y;
this.position[2] = this.body.position.z;
this.rotation[0] = this.body.quaternion.x;
this.rotation[1] = this.body.quaternion.y;
this.rotation[2] = this.body.quaternion.z;
this.rotation[3] = this.body.quaternion.w;
}
} |
|
| JavaScript | 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
| const vertShaderSource =
`attribute vec4 aPosition;
attribute vec4 aNormal;
uniform mat4 uMvpMatrix;
uniform mat4 uModelMatrix;
uniform mat4 uNormalMatrix;
varying vec3 vPosition;
varying vec3 vNormal;
void main()
{
gl_Position = uMvpMatrix * aPosition;
vPosition = vec3(uModelMatrix * aPosition);
vNormal = normalize(vec3(uNormalMatrix * aNormal));
}`;
const fragShaderSource =
`precision mediump float;
const vec3 lightColor = vec3(1.0, 1.0, 1.0);
const float ambient = 0.3;
uniform vec3 uLightPosition;
uniform vec3 uColor;
varying vec3 vPosition;
varying vec3 vNormal;
void main()
{
vec4 color = vec4(0.5, 1.0, 0.5, 1.0);
vec3 normal = normalize(vNormal);
vec3 lightDirection = normalize(uLightPosition - vPosition);
float nDotL = max(dot(lightDirection, normal), ambient);
vec3 diffuse = lightColor * uColor * nDotL;
gl_FragColor = vec4(diffuse, 1.0);
}`;
const vShader = gl.createShader(gl.VERTEX_SHADER);
gl.shaderSource(vShader, vertShaderSource);
gl.compileShader(vShader);
let ok = gl.getShaderParameter(vShader, gl.COMPILE_STATUS);
if (!ok) { console.log("vert: " + gl.getShaderInfoLog(vShader)); };
const fShader = gl.createShader(gl.FRAGMENT_SHADER);
gl.shaderSource(fShader, fragShaderSource);
gl.compileShader(fShader);
ok = gl.getShaderParameter(vShader, gl.COMPILE_STATUS);
if (!ok) { console.log("frag: " + gl.getShaderInfoLog(fShader)); };
const program = gl.createProgram();
gl.attachShader(program, vShader);
gl.attachShader(program, fShader);
gl.bindAttribLocation(program, 0, "aPosition");
gl.bindAttribLocation(program, 1, "aNormal");
gl.linkProgram(program);
ok = gl.getProgramParameter(program, gl.LINK_STATUS);
if (!ok) { console.log("link: " + gl.getProgramInfoLog(program)); };
gl.useProgram(program); |
|
| JavaScript | 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
| async function initVertexBuffers(modelPaths, callback)
{
const vertPosBuffers = [];
const normalBuffers = [];
const amounts = [];
for (let i = 0; i < modelPaths.length; ++i)
{
const contentResponse = await fetch(modelPaths[i]);
const content = await contentResponse.text();
const parser = new DOMParser();
const xmlDoc = parser.parseFromString(content, "text/xml");
const expForIndexes = "//*[local-name() = 'p']/text()";
let nodes = xmlDoc.evaluate(expForIndexes, xmlDoc, null, XPathResult.ANY_TYPE, null);
let result = nodes.iterateNext();
const order = result.textContent.trim().split(" ").map((value) => { return parseInt(value); });
// console.log(order);
const partOfPositionId = "mesh-positions-array";
const expForPositions = `//*[local-name() = 'float_array'][substring(@id, string-length(@id) -` +
`string-length('${partOfPositionId}') + 1) = '${partOfPositionId}']`;
nodes = xmlDoc.evaluate(expForPositions, xmlDoc, null, XPathResult.ANY_TYPE, null);
result = nodes.iterateNext();
const positions = result.textContent.trim().split(" ").map((value) => { return parseFloat(value); });
// console.log(positions);
const partOfNormalId = "mesh-normals-array";
const expForNormals = `//*[local-name() = 'float_array'][substring(@id, string-length(@id) -` +
`string-length('${partOfNormalId}') + 1) = '${partOfNormalId}']`;
nodes = xmlDoc.evaluate(expForNormals, xmlDoc, null, XPathResult.ANY_TYPE, null);
result = nodes.iterateNext();
const normals = result.textContent.trim().split(" ").map((value) => { return parseFloat(value); });
// console.log(normals);
const correctionMatrix = glMatrix.mat4.create();
glMatrix.mat4.fromXRotation(correctionMatrix, -Math.PI / 2);
const vertPosResult = [];
const normalsResult = [];
const amountOfTriangles = order.length / 6;
for (let i = 0; i < amountOfTriangles; ++i)
{
for (let j = 0; j < 6; ++j)
{
if ((i * 6 + j) % 2 === 0)
{
const vx = positions[order[i * 6 + j] * 3 + 0];
const vy = positions[order[i * 6 + j] * 3 + 1];
const vz = positions[order[i * 6 + j] * 3 + 2];
const oldPos = glMatrix.vec3.fromValues(vx, vy, vz);
const newPos = glMatrix.vec3.create();
glMatrix.vec3.transformMat4(newPos, oldPos, correctionMatrix);
vertPosResult.push(newPos[0]);
vertPosResult.push(newPos[1]);
vertPosResult.push(newPos[2]);
}
else
{
const nx = normals[order[i * 6 + j] * 3 + 0];
const ny = normals[order[i * 6 + j] * 3 + 1];
const nz = normals[order[i * 6 + j] * 3 + 2];
const oldNormal = glMatrix.vec3.fromValues(nx, ny, nz);
const newNormal = glMatrix.vec3.create();
glMatrix.vec3.transformMat4(newNormal, oldNormal, correctionMatrix);
normalsResult.push(newNormal[0]);
normalsResult.push(newNormal[1]);
normalsResult.push(newNormal[2]);
}
}
}
// console.log(vertPosResult);
const vertPosBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, vertPosBuffer);
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(vertPosResult), gl.STATIC_DRAW);
const normalBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, normalBuffer);
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(normalsResult), gl.STATIC_DRAW);
vertPosBuffers.push(vertPosBuffer);
normalBuffers.push(normalBuffer);
amounts.push(vertPosResult.length / 3);
}
callback(vertPosBuffers, normalBuffers, amounts);
} |
|
| JavaScript | 1
2
3
4
| const canvas = document.getElementById("renderCanvas");
const gl = canvas.getContext("webgl");
gl.enable(gl.DEPTH_TEST);
gl.clearColor(0.5, 0.6, 0.8, 1.0); |
|
|
